首页 > 代理产品 > 半导体激光器类&SLD > Lumics 激光器 > LuOcean 激光系统 > LuOcean二极管激光系统

详情介绍

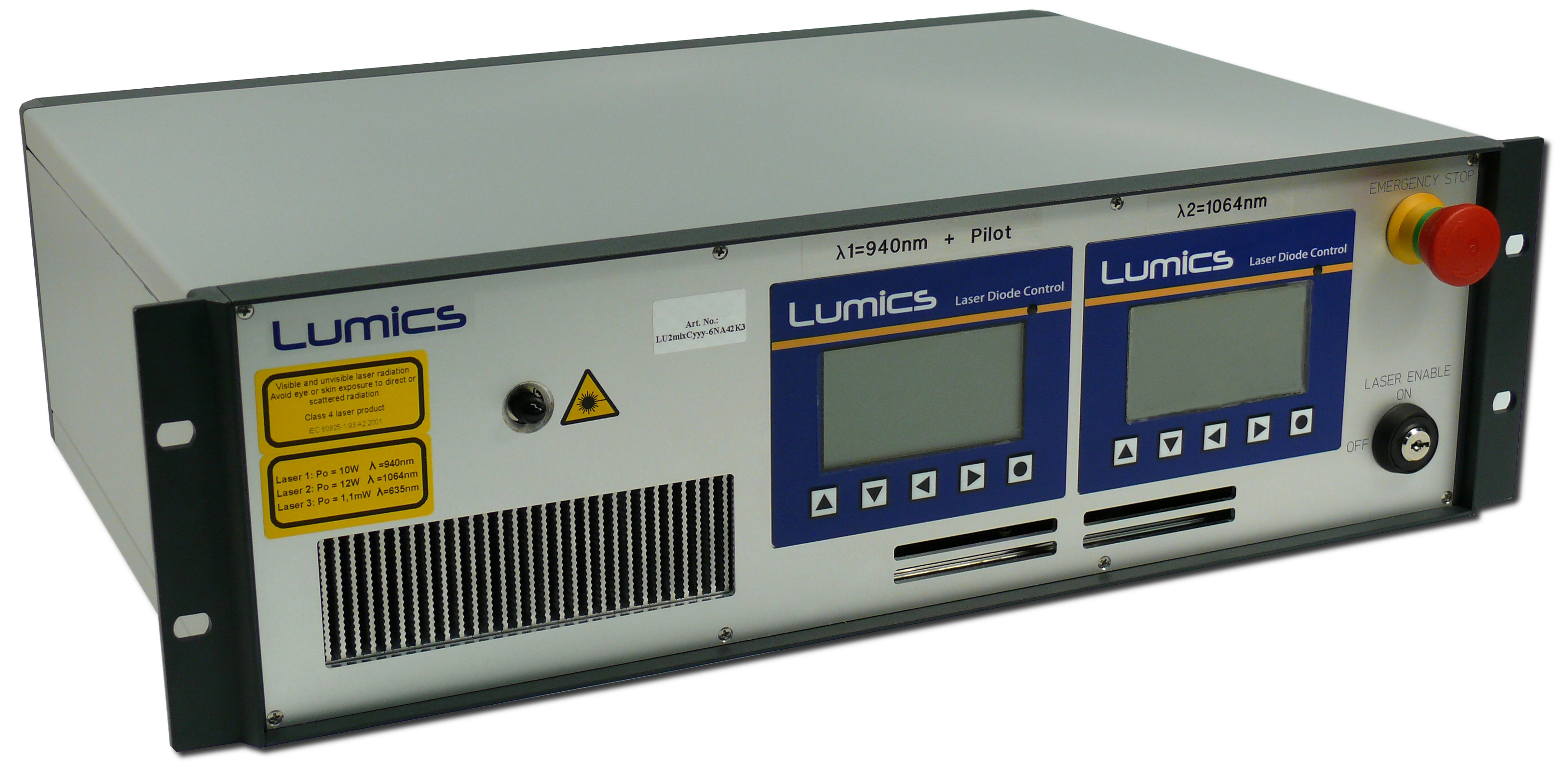

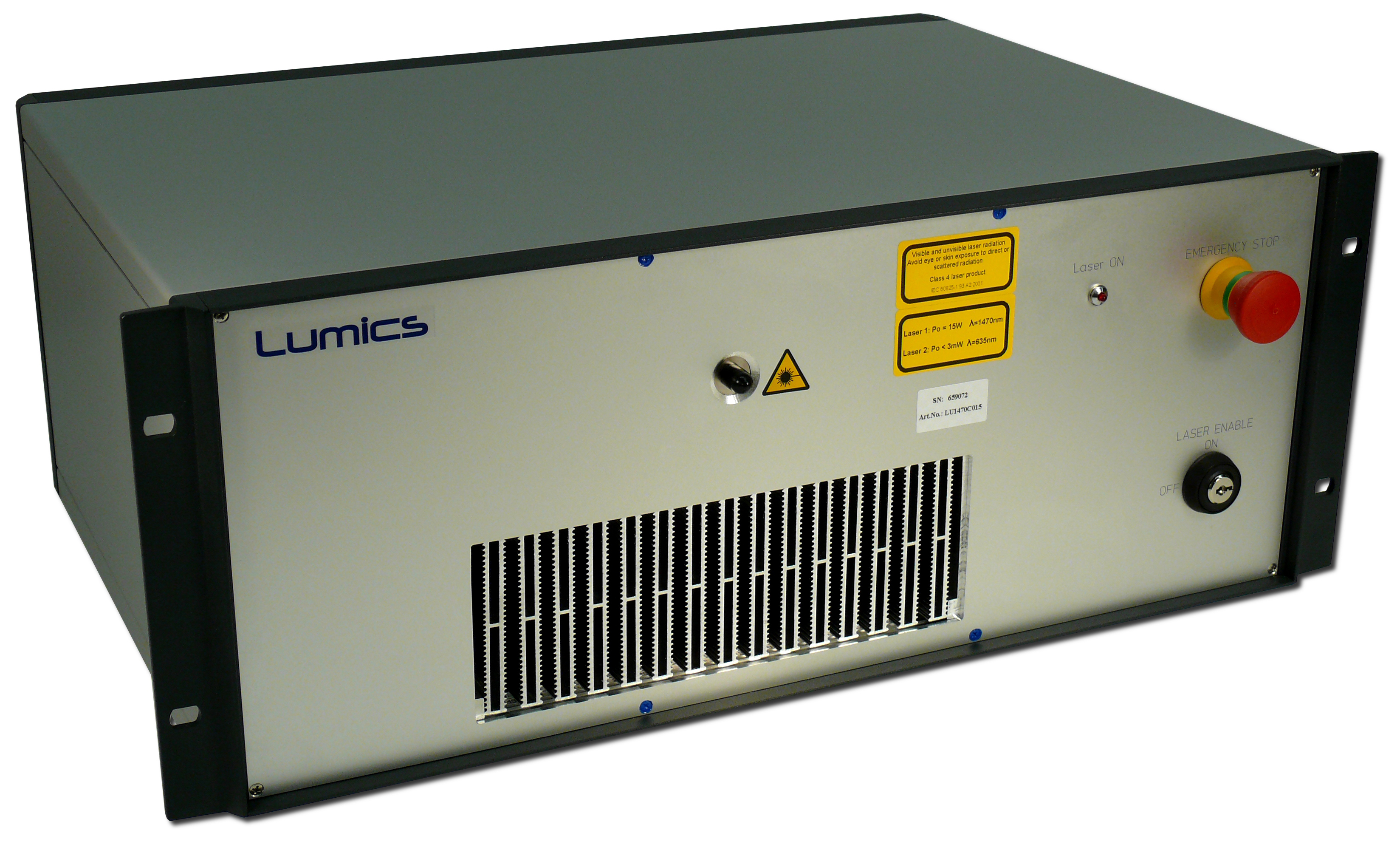

LuOcean二极管激光系统

Lumics的turn-key 系统是基于LuOcean的直接激光二极管模块：

•波长从793 nm到9xx nm和1470 nm到1940 nm的混合波长

•光纤耦合100µm- 600µm

•光参数积10mm x mrad – 60mm x mrad

•高可靠性的红外二极管激光模块

• CW或脉冲操作

•工业套管

                                                                 • 空气或水冷却

                                                                 • OEM，19“机架兼容，或桌面配置

                                                                 • 接口：RS232，显示器，LabVIEW兼容，或专有控制器软件

                                                                 • 各种参数可选

二极管激光系统

冷却方式

功率 (Pmax)

相关描述

Air cooling

100(90)W at Tambient<25

(35)°C @808nm
110(100)W at Tambient <25   (35)°C @9xx nm
35(30)W at Tambient <25

(35)°C @1470nm

Diode laser driver with
TEC controller, key switch, E-stop, safety interlock



Water inlet/outlet

150W,
max. operating current <20A

Diode laser driver with key switch, E-stop, safety interlock,
external chiller needed

*更多波长可选

指标说明

应用领域
